Magnet cranes GKMJ 10t/15,34m with a cantilever hoist and GDMJ 10t/17,12m with a rotary hoist for FERRUM Plzeň

Year or realization	2008
Customer	FERRUM PLZEŇ spol. s r.o.
Place of installation	Prodution hall of FERRUM PLZEŇ spol. s r.o.
Range of delivery	Delivery and mounting of: I. Double girder bridge crane, type GDMJ 10t/17,120m with a GIGA rotary hoist Span: 17,12m Lifting capacity: 10t Is equipped with a GIGA rotary hoist, type GSF 5025-12-2x2/1-21 M,D,2B,O,27M with a double-rail trolley and a trolley for hoist rotation (without rope stabilization on the traverse) Lifting height: 9m Crane group classification: A6 Liftting speed: 0-8-24 m/min - smooth torque-related speed regulation (it means that lifting speed of 0,32-8m/min is with full load of 8t, lifting speed of 0.32-24 m/min is with lower load. The lifting motor communicates with the static frequency inverter and depending on the load allows the max. lifting speed up to 24 m/min without a load) Hoist rotary speed: 0...1,5 ot/min Rotation angle: 0...90° Hoist travel speed: 0...30 m/min Bridge travel speed: 0...100 m/min Control: radio with two-position joysticks, with a sling for the fixation around a waist, with a seven-position switch for to set the magnet power (0-100%) and elements for listing the magnets, etc. The crane is equipped with the GIGAtronic TWD 01 device for monitoring of crane state in according with ČSN ISO 12482-1. II. Single girder bridge crane, type GKMJ 10t/15,340m with a GIGA cantilever hoist Span: 15,34m Lifting capacity: 10t Is equipped with a GIGA cantilever hoist, type GSF 5025-12-4x2/1-33M,K,2B with a trolley and rope stabilization on the traverse by means of transferring drums and 4 pulleys on the traverse. Lifting height: 9m Crane group classification: A6 Liftting speed: 0-8-24 m/min - smooth torque-related speed regulation (it means that lifting speed of 0,32-8m/min is with full load of 8t, lifting speed of 0.32-24 m/min is with lower load. The lifting motor communicates with the static frequency inverter and depending on the load allows the max. lifting speed up to 24 m/min without a load) Hoist travel speed: 0...30 m/min Bridge travel speed: 0...100 m/min Control: radio with two-position joysticks, with a sling for the fixation around a waist, with a seven-position switch for to set the magnet power (0-100%) and elements for listing the magnets, etc. The crane is equipped with the GIGAtronic TWD 01 device for monitoring of crane state in according with ČSN ISO 12482-1.

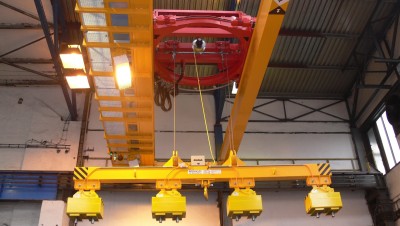

Magnetový žeriav GDMJ 10t/17,12m s otočnou mačkou

Magnetový žeriav GKMJ 10t/15,340m s konzolovou mačkou
