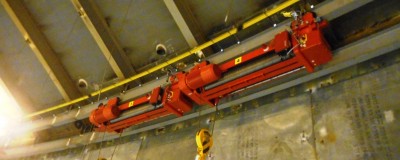

Electric wire-rope hoists for a gas field in Russian peninsula Jamal

Year of realization	2015
Customer	GIGA Severo-Západ, Ltd., Russia, St.-Petersburg
End Customer	Velesstroj, Ltd., Russia, Moscow
Place of installation	Peninsula Yamal, Russia, a natural gas field
Range of delivery	Delivery of 4pcs of hoists, including power supply for installation inside the round reservoirs with the diameter of 75m. In each reservoir, two hoists move along an endless beam, that´s why each hoist is equipped with two optical anti-collision device. The hoists are determined for assembly and mounting the equipment inside the reservoirs. After installation is finished, they are to be used for the next gas field installation.. Transportation to the mounting place: by vehicle to Russian port Murmansk, after that by sea ship Complete mounting in the mounting place was provided by our Russian partner GIGA Severo-Západ, Ltd. Warranty service is provided by GIGA Severo-Západ, Ltd. The main parameters of the hoists: Type of the hoists: electrical wire rope hoist for a curved beam Marking: GHM 12500-16-2/1-24M,R Capacity 6,3t Lifting height: 48m Beam radius: 37500mm Special equipment: each hoist is equipped with two optical anti-collision devices
