Bridge cranes GJMJ 25t/31,425m and GDMJ 2,5t+2,5t/31,425m for Constellium Extrusions Děčín
Year of realization | 2019 |
Customer | Constellium Extrusions Děčín s.r.o. |
Place of installation | Production hall ofConstellium Extrusions Děčín s.r.o., Děčín |
Range of delivery |

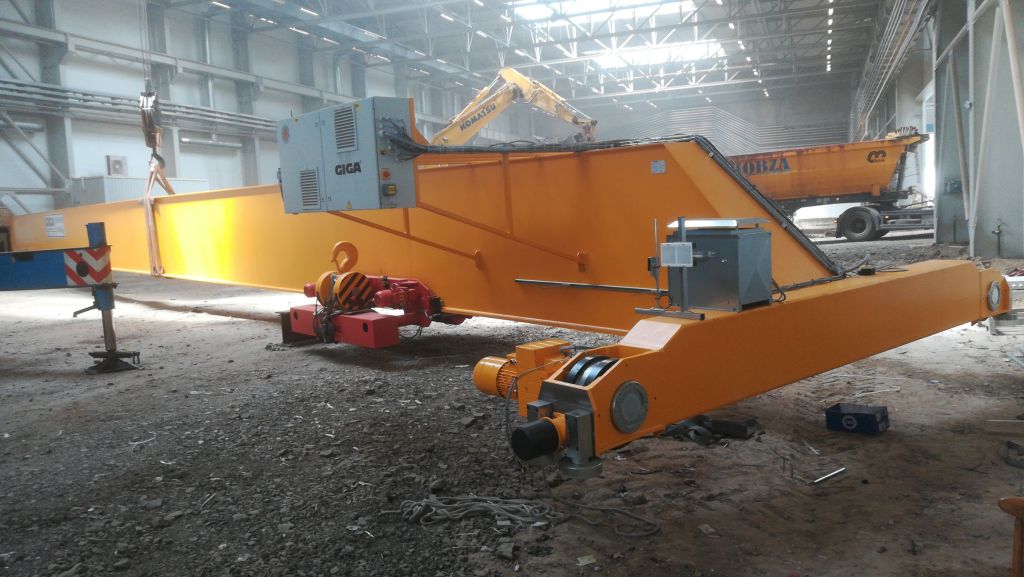

Delivery and mounting of a single girder bridge crane, type GJMJ 25t/31,425m
Span: 31,425m
Lifting capacity: 25t
Crane group classification: A4
Provozní teplota: -5 až +45°C
Osazen kladkostrojem GIGA, typ GHM 25000-14-4/1-12M,Z se zkrácenou stavební výškou
Lifting hight: 12m
Lifting speed: 0,5/3,5 m/min
Hoist travel speed: 0...32 m/min
Crane travel speed: 0...60 m/min
Control: radio with two-position joysticks, with a sling for the fixation around a waist
The crane is equipped with an external display for the displying a load weight (technological weighing)
Delivery and mounting of a double girder bridge crane, type GDMJ 2,5t+2,5t/31,425m
Span: 31,425m
This double-girder bridge crane is equipped with a crane crab, type GJMJ 5t/6m with two hoists, type GHM 5000-20-2/1-6M,Z
Lifting capacity: 2,5t + 2,5t
Crane group classification: A6
Provozní teplota: -5 až +45°C
Lifting hight: 12m
Lifting speed of the both hoists: 1,6/10 m/min
Hoists travel speed: 5 m/min
Crane crabe travel speed: 0...32 m/min (single-girder crane with two hoists)
Crane travel speed: 0...60 m/min
Control: radio with two-position joysticks, with a sling for the fixation around a waist
The crane is equipped with an external display for the displying a load weight (technological weighing)
|
